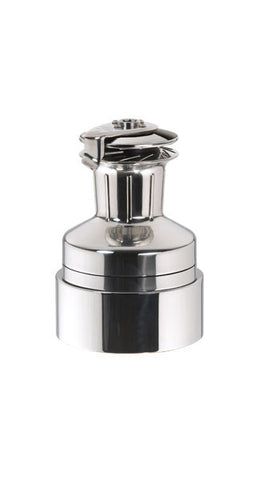

WINCH, FULL STAINLESS 40 ABOVE DECK VARIABLE

Andersen

WINCH, FULL STAINLESS 40 ABOVE DECK VARIABLE

$8,699.00 CAD
Currently Out of Stock

WINCH 40 ABOVE DECK VARIABLE

12V. FULL STAINLESS

Compact Electric Winches - Above Deck

Compact Motor™ Electric Winches - Above Deck

If you desire the convenience of electric winches but have limited below-deck space, ANDERSEN Compact Motor™ Electric Winches are the perfect choice. They use our new highly compact variable-speed motor that was developed especially with the size and shape of a winch in mind. With its highly efficient power consumption, impressive line speed and high-load capacity, this small but powerful motor is the perfect power source for difficult winch placement.

An ANDERSEN exclusive, our Compact Electric Winch motor uses non-carbon brush technology to virtually eliminate the wear and tear of traditional electric motor designs. It uses 30-50% less power, yet can be positioned within the diameter of a standard winch mounting footprint for tight space applications.

The ANDERSEN Compact Motor™ Electric Winch is available in two models for eitherAbove Deck or Below Deck motor placement. Extremely easy to install and maintain, it integrates the motor, gears and power control into one compact unit with no extra control box necessary. Cables can be connected directly to the motor base.

As with all ANDERSEN Winches™, our Compact Motor™ Electric Winch features the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. This model also uses our exclusive self-tailing device that automatically accommodates a wide range of different line sizes.

Important Information
Mounting of an Above Deck Compact Motor™ winch on a vertical surface is not recommended, as it increases exposure to potential problems of excessive moisture and water ingress which could lead to damage not covered by warranty. The motor/gearbox unit of any Above Deck Compact Motor™ Electric Winch is more exposed to the elements than a below deck installation which keeps the motor unit and gearbox more protected. It is important to take reasonable precautions to protect the unit from unnecessary exposure, and carry out regular seasonal maintenance including the lubrification of the motor shaft seal. This is just good seamanship. On commercial and military vessels, it is common to see exposed equipment with electric motors and gearboxes fitted with covers when not in use or to protect them from heavy spray, etc. Equipment on yachts deserves the same proper care.

Self-Tailing Electric Winches Compact Motor - Variable Speed, Above Deck



Product Number RA2034005100 RA2034015200 RA2034005200 RA2040015100 RA2040005100
Model 34 ST - Black Trim, 12 Volt 34 ST FS - Full Stainless, 24 Volt 34 ST - Black Trim, 24 Volt 40 ST FS - Full Stainless, 12 Volt 40 ST - Black Trim, 12 Volt
Drum Ø D  (mm) 70 70 70 75 75
Base Ø B  (mm) 125 125 125 152 152
Height H  (mm) 151 151 151 174 174
Line Entry L  (mm) 151 151 151 157 157
Line Size  (mm) 8-14 8-14 8-14 8-14 8-14
Weight  (kg) 16 16 16 17 17
Max
Deck K  (mm)
45 45 45 45 45
Motor Height J  (mm) 86 86 86 86 86
Motor Ø S  (mm) 200 200 200 200 200
Motor Depth U  (mm) 40-75 40-75 40-75 40-75 40-75



Product Number RA2040015200 RA2040005200 RA2046015100 RA2046005100 RA2046015200
Model 40 ST FS - Full Stainless, 24 Volt 40 ST - Black Trim, 24 Volt 46 ST FS - Full Stainless, 12 Volt 46 ST - Black Trim, 12 Volt 46 ST FS - Full Stainless, 24 Volt
Drum Ø D  (mm) 75 75 89 89 89
Base Ø B  (mm) 152 152 180 180 180
Height H  (mm) 174 174 209 209 209
Line Entry L  (mm) 157 157 175 175 175
Line Size  (mm) 8-14 8-14 8-14 8-14 8-14
Weight  (kg) 17 17 19 19 19
Max
Deck K  (mm)
45 45 45 45 45
Motor Height J  (mm) 86 86 85 85 85
Motor Ø S  (mm) 200 200 200 200 200
Motor Depth U  (mm) 40-75 40-75 40-75 40-75 40-75
