WINCH 28STE BELOW DECK VARIABLE

12V. SELF TAILING

Compact Motor™ Electric Winches - Below Deck

If you desire the convenience of electric winches but have limited below-deck space, ANDERSEN Compact Motor™ Electric Winches are the perfect choice. They use our new highly compact variable-speed motor that was developed especially with the size and shape of a winch in mind. With its highly efficient power consumption, impressive line speed and high-load capacity, this small but powerful motor is the perfect power source for difficult winch placement.

An ANDERSEN exclusive, our Compact Electric Winch motor uses non-carbon brush technology to virtually eliminate the wear and tear of traditional electric motor designs. It uses 30-50% less power, yet can be positioned within the diameter of a standard winch mounting footprint for tight space applications.

The ANDERSEN Compact Motor™ Electric Winch is available in two models for eitherAbove Deck or Below Deck motor placement. Extremely easy to install and maintain, it integrates the motor, gears and power control into one compact unit with no extra control box necessary. Cables can be connected directly to the motor base.

As with all ANDERSEN Winches™, our Compact Motor™ Electric Winch features the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. This model also uses our exclusive self-tailing device that automatically accommodates a wide range of different line sizes.

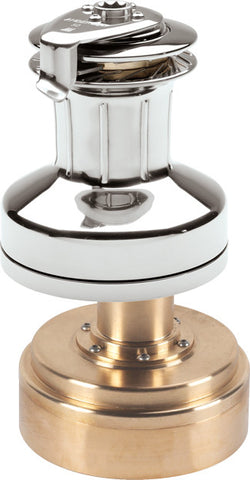

Self Tailing Electric Winch Compact Motor - Variable Speed, Below Deck

Product Number	RA2028014100	RA2028004100	RA2028014200	RA2028004200	RA2034014100
Model	28 ST FS - Full Stainless, 12 Volt	28 ST - Black Trim, 12 Volt	28 ST FS - Full Stainless, 24 Volt	28 ST - Black Trim, 24 Volt	34 ST FS - Full Stainless, 12 Volt
Drum Ø D  (mm)	70	70	70	70	70
Base Ø B  (mm)	125	125	125	125	125
Height H  (mm)	159	159	159	159	159
Line Entry L  (mm)	73	73	73	73	73
Line Size  (mm)	8-14	8-14	8-14	8-14	8-14
Weight  (kg)	17	17	17	17	17
Max Deck K  (mm)	54	54	54	54	54
Motor Depth J  (mm)	180	180	180	180	180
Motor Ø S  (mm)	195	195	195	195	195

Product Number	RA2034004100	RA2034014200	RA2034004200	RA2040014100	RA2040004100
Model	34 ST - Black Trim, 12 Volt	34 ST FS - Full Stainless, 24 Volt	34 ST - Black Trim, 24 Volt	40 ST FS - Full Stainless, 12 Volt	40 ST - Black Trim, 12 Volt
Drum Ø D  (mm)	70	70	70	75	75
Base Ø B  (mm)	125	125	125	152	152
Height H  (mm)	159	159	159	182	182
Line Entry L  (mm)	73	73	73	79	79
Line Size  (mm)	8-14	8-14	8-14	8-14	8-14
Weight  (kg)	17	17	17	18	18
Max Deck K  (mm)	54	54	54	54	54
Motor Depth J  (mm)	180	180	180	180	180
Motor Ø S  (mm)	195	195	195	195	195

Product Number	RA2040014200	RA2040004200	RA2046014100	RA2046004100	RA2046014200
Model	40 ST FS - Full Stainless, 24 Volt	40 ST - Black Trim, 24 Volt	46 ST FS - Full Stainless, 12 Volt	46 ST - Black Trim, 12 Volt	46 ST FS - Full Stainless, 24 Volt
Drum Ø D  (mm)	75	75	89	89	89
Base Ø B  (mm)	152	152	180	180	180
Height H  (mm)	182	182	209	209	209
Line Entry L  (mm)	79	79	90	90	90
Line Size  (mm)	8-14	8-14	8-14	8-14	8-14
Weight  (kg)	18	18	21	21	21
Max Deck K  (mm)	54	54	62	62	62
Motor Depth J  (mm)	180	180	188	188	188
Motor Ø S  (mm)	195	195	195	195	195

Product Number	RA2046004200	RA2050014100	RA2050004100	RA2050014200	RA2050004200
Model	46 ST - Black Trim, 24 Volt	50 ST FS, Full Stainless, 12 Volt	50 ST - Black Trim, 12 Volt	50 ST FS, Full Stainless, 24 Volt	50 ST - Black Trim, 24 Volt
Drum Ø D  (mm)	89	89	89	89	89
Base Ø B  (mm)	180	180	180	180	180
Height H  (mm)	209	209	209	209	209
Line Entry L  (mm)	90	90	90	90	90
Line Size  (mm)	8-14	8-14	8-14	8-14	8-14
Weight  (kg)	21	21	21	21	21
Max Deck K  (mm)	62	62	62	62	62
Motor Depth J  (mm)	188	188	188	188	188
Motor Ø S  (mm)	195	195	195	195	195

Product Number	RA2052014100	RA2052004100	RA2052014200	RA2052004200	RA2058014100
Model	52 ST FS - Full Stainless, 12 Volt	52 ST - Black Trim, 12 Volt	52 ST FS - Full Stainless, 24 Volt	52 ST - Black Trim, 24 Volt	58 ST FS - Full Stainless, 12 Volt
Drum Ø D  (mm)	100	100	100	100	115
Base Ø B  (mm)	200	200	200	200	230
Height H  (mm)	228	228	228	228	267
Line Entry L  (mm)	106	106	106	106	121
Line Size  (mm)	8-16	8-16	8-16	8-16	8-18
Weight  (kg)	30	30	30	30	36
Max Deck K  (mm)	62	62	62	62	48
Motor Depth J  (mm)	174	174	174	174	174
Motor Ø S  (mm)	250	250	250	250	250

Product Number	RA2058014200	RA2062014100	RA2062014200	RA2068014100	RA2068014200
Model	58 ST FS - Full Stainless, 24 Volt	62 ST FS - Full Stainless, 12 Volt	62 ST FS - Full Stainless, 24 Volt	68 ST FS - Full Stainless, 12 Volt	68 ST FS - Full Stainless, 24 Volt
Drum Ø D  (mm)	115	115	115	140	140
Base Ø B  (mm)	230	230	230	280	280
Height H  (mm)	267	267	267	290	290
Line Entry L  (mm)	121	121	121	130	130
Line Size  (mm)	8-18	8-18	8-18	10-18	10-18
Weight  (kg)	36	36	36	45	45
Max Deck K  (mm)	48	48	48	52	52
Motor Depth J  (mm)	174	174	174	178	178
Motor Ø S  (mm)	250	250	250	250	250

Product Number	RA2072014100	RA2072014200
Model	72 ST FS - Full Stainless, 24 Volt	72 ST FS - Full Stainless, 24 Volt
Drum Ø D  (mm)	140	140
Base Ø B  (mm)	280	280
Height H  (mm)	290	290
Line Entry L  (mm)	130	130
Line Size  (mm)	10-18	10-18
Weight  (kg)	45.0	45.0
Max Deck K  (mm)	52	52
Motor Depth J  (mm)	178	178
Motor Ø S  (mm)	250	250
