Andersen
WINCH,FULL STAINLESS,1-SPD,#12ST
WINCH,FULL STAINLESS ,1-SPD,#12ST
SELF-TAILING

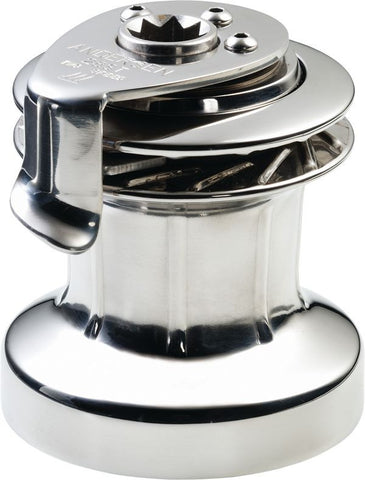

Full Stainless Self-Tailing Winches
If you take pride in having your yacht look its best, ANDERSEN's Full Stainless Self-Tailing Winch creates the dock-stopping appeal you desire. It combines all the convenience and power of ANDERSEN's self-tailing winch with a stunning all stainless steel look.
From top to bottom the drive shaft stripper arm, self-tailing jaws, drum and upper & lower trim rings are manufactured in highest quality and beautifully polished grade 316 stainless steel. The dramatic result is a highly reflective winch that becomes a highlight of the boat and a true reflection of your yachting pride. We like to say, “Full Stainless – Beyond Good Looks.”
As with all ANDERSEN Winches™, our Full Stainless Self-Tailing winch features the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. This model also uses our exclusive self-tailing device that automatically accommodates a wide range of different line sizes.
If you prefer to match the color of your winches with the style of your boat, we offer a tough titanium-coating option that will never show wear or tear.
Self-Tailing Manual Winches - Full Stainless Steel |
 |
 |
 |
 |
 |
 |
 |
| Product Number | RA2012010000 | RA2018010000 | RA2028010000 | RA2034010000 | RA2040010000 |
| Model | 12 ST FS | 18 ST FS | 28 ST FS | 34 ST FS | 40 ST FS |
| Drum Ø D (mm) | 70 | 70 | 70 | 70 | 75 |
| Base Ø B (mm) | 115 | 120 | 125 | 125 | 152 |
| Height H (mm) | 130 | 136 | 151 | 151 | 174 |
| Line Entry L (mm) | 44 | 50 | 65 | 65 | 71 |
| Line Size (mm) | 8-14 | 8-14 | 8-14 | 8-14 | 8-14 |
| Weight (kg) | 2.6 | 3.2 | 3.9 | 4.1 | 4.9 |
| Gear ratio 1st speed | 1.3 : 1 | 2.6 : 1 | 1.3 : 1 | 1.3:1 | 1.3 : 1 |
| Gear ratio 2nd speed | - | - | 4.0 : 1 | 4.7:1 | 6.0 : 1 |
| Power ratio 1st speed | 9.5 : 1 | 18.8 : 1 | 9.5 : 1 | 9.5:1 | 8.9 : 1 |
| Power ratio 2nd speed | - | - | 28.6 : 1 | 33.8:1 | 40.0 : 1 |
|
 |
 |
 |
 |
 |
| Product Number | RA2046010000 | RA2050010000 | RA2052010000 | RA2058010000 | RA2062010000 |
| Model | 46 ST FS | 50 ST FS | 52 ST FS | 58 ST FS | 62 ST FS |
| Drum Ø D (mm) | 89 | 89 | 100 | 115 | 115 |
| Base Ø B (mm) | 180 | 180 | 200 | 230 | 230 |
| Height H (mm) | 209 | 209 | 228 | 257 | 257 |
| Line Entry L (mm) | 90 | 90 | 106 | 111 | 111 |
| Line Size (mm) | 8-14 | 8-14 | 8-16 | 8-18 | 8-18 |
| Weight (kg) | 7.8 | 7.8 | 10.3 | 16.0 | 16.0 |
| Gear ratio 1st speed | 2.8 : 1 | 2.8:1 | 3.2 : 1 | 3.7 : 1 | 3.7 : 1 |
| Gear ratio 2nd speed | 8.4 : 1 | 8.8:1 | 10.5 : 1 | 13.1 : 1 | 14.4 : 1 |
| Power ratio 1st speed | 15.7 : 1 | 15.7:1 | 16.2 : 1 | 16.0 : 1 | 16.0 : 1 |
| Power ratio 2nd speed | 47.1 : 1 | 49.3:1 | 52.5 : 1 | 57.1 : 1 | 62.6 : 1 |
|
 |
 |
 |
 |
| Product Number | RA2068010000 | RA2072010000 | RA2078010000 | RA2110010000 |
| Model | 68 ST FS | 72 ST FS | 78 ST FS | 110 ST FS |
| Drum Ø D (mm) | 140 | 140 | 170 | 250 |
| Base Ø B (mm) | 280 | 280 | 320 | 395 |
| Height H (mm) | 280 | 280 | 375 | 426 |
| Line Entry L (mm) | 120 | 120 | 170 | 170 |
| Line Size (mm) | 10-18 | 10-18 | 16-22 | 16-25 |
| Weight (kg) | 24.5 | 24.5 | 49.0 | 72.5 |
| Gear ratio 1st speed | 5.8 : 1 | 5.8 : 1 | 7.0 : 1 | 10.2 : 1 |
| Gear ratio 2nd speed | 18.8 : 1 | 20.3 : 1 | 26.7 : 1 | 56.1 : 1 |
| Power ratio 1st speed | 20.7 : 1 | 20.7 : 1 | 20.6 : 1 | 20.3 : 1 |
| Power ratio 2nd speed | 67.1 : 1 | 72.6 : 1 | 78.4 : 1 | 112.2 : 1 |
