Ronstan

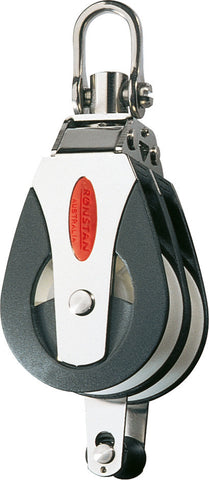

BLOCK,DOUBLE & BECKET, UNIVERSAL 12mm
Currently Out of Stock
BLOCK,DOUBLE & BECKET, UNIVERSAL 12mm
SERIES 50, ALL PURPOSE
ALL PURPOSE BLOCKS
Series 50mm
FEATURES
- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating sheave
- Slotted pin shackle eliminates fouled lines
- Lockable swivelling head post
- Snap fit removable becket pin
- Spare parts - RF51010 Replacement Becket Pin, RF151 shackle
Sheave Ø | 50 mm |
---|---|
Max. Rope Ø | 12 mm |
Max. Cable Ø | - mm |
Pin Ø | 6.0 mm |
M.W.L. | 1000 kg |
B. L. | 2000 kg |
Weight | 271 g |
PRODUCT INFORMATION
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Head can be locked at 0° or 90° by engaging the grub screw in either the 0 or 90 degree position. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or toolAPPLICATIONS
- Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft)
MATERIALS
- Grade 316 stainless steel load strap
- Impact and UV resistant, fibre reinforced Nylon cheeks
