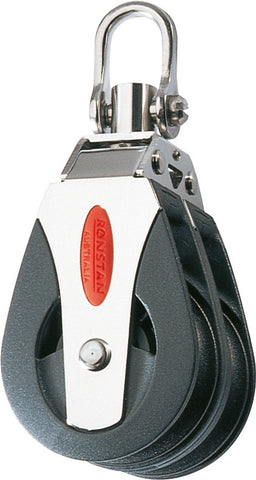

BLOCK,DOUBLE,UNIVERSAL 12mm

Ronstan

BLOCK,DOUBLE,UNIVERSAL 12mm

$108.00 CAD
In Stock

BLOCK,DOUBLE,UNIVERSAL 12mm

NEW SERIES 50, BALL BEARING

 BALL BEARING BLOCKS

 Series 50mm

FEATURES

  • Low friction, 2-stage ball bearing system
  • High static and dynamic load capacity
  • Lightweight
  • Cheek cut-outs for easy bearing maintenance
  • Slotted pin shackle eliminates fouled lines
  • Lockable swivelling head post


Sheave Ø 50 mm
Max. Rope Ø 12 mm
Max. Cable Ø - mm
Pin Ø 6.0 mm
M.W.L. 800 kg
B. L. 2000 kg
Weight 254 g




PRODUCT INFORMATION

Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Head can be locked at 0° or 90° by engaging the grub screw in either the 0 or 90 degree position.

APPLICATIONS

  • Mainsheet
  • Spinnaker sheets
  • Halyards and other primary applications on boats up to 10m (33ft)

MATERIALS

  • Acetal ball bearings
  • UV stabilised Acetal sheave
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fibre reinforced Nylon cheeks
