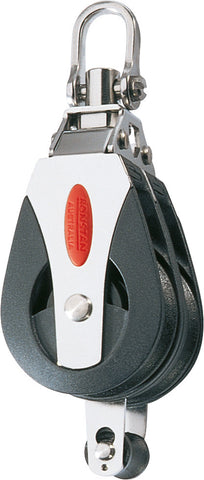

BLOCK,DOUBLE & BECKET,BALL BEARING 3/8"

Ronstan

BLOCK,DOUBLE & BECKET,BALL BEARING 3/8"

$111.98 CAD
In Stock

BLOCK,DOUBLE & BECKET,BALL BEARING 3/8"

SERIES 40

 BALL BEARING BLOCKS

 Series 40mm

FEATURES

  • Low friction Acetal or Torlon® bearing system
  • Lightweight
  • Cheek cut-outs for easy bearing maintenance
  • Slotted pin shackle eliminates fouled lines
  • Two way head post
  • Snap fit removable becket pin


Sheave Ø 40 mm
Max. Rope Ø 10 mm
Max. Cable Ø - mm
Pin Ø 5.0 mm
M.W.L. 500 kg
B. L. 1200 kg
Weight 142 g




PRODUCT INFORMATION

Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Head can be locked at 0° or 90° by removing the shackle and changing the headpost orientation. . Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.

APPLICATIONS

  • Mainsheet
  • Halyard
  • Vang
  • Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)

MATERIALS

  • Acetal ball bearings
  • UV stabilised Acetal sheave
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fibre reinforced Nylon cheeks
