Ronstan
TRACK,SMALL I-BEAM 6 5'
Currently Out of Stock

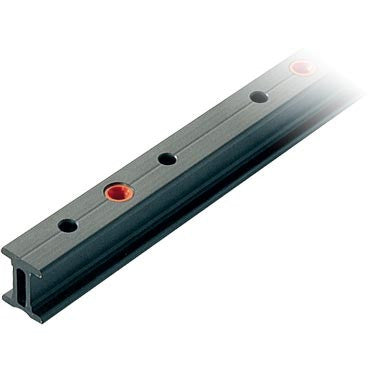

TRACK,SMALL I-BEAM 6.5' (2m)
I-BEAM TRAVELLER SYSTEM
Series 19mm, Track
| Length | 1996 mm |
|---|---|
| Width | 19 mm |
| Weight | 1650 g |
PRODUCT INFORMATION
TRACK FASTENINGS - To suit 5mm (3/16") countersunk fasteners at 100mm (3 15/16") centres.
STOP HOLES - 50mm (1 31/32") centres.
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
MINIMUM CURVE RADIUS
For 51mm (2") car . Min horizontal 'A' curve radius = 400mm (15 3/4"). Min horizontal 'B' curve radius = 400mm (15 3/4").
For 86mm (3 3/8") car . Min horizontal 'A' curve radius = 1200mm (47 1/4"). Min horizontal 'B' curve radius = not suitable.
For 105mm (4 3/16") car . Min horizontal 'A' curve radius = 400mm (15 3/4"). Min horizontal 'B' curve radius = not suitable.
APPLICATIONS
- Mainsheet and self-tacking jib travellers on dinghies and catamarans
- Mainsheet systems on boats to 9m (28ft)
MATERIALS
- Anodised aluminium alloy
