Max Power
THRUSTER,CT80-24 COMP.DUO
Electric Tunnel Thrusters
Max Power offers a complete range of 12V/24V electric tunnel thrusters to suit motor boats and deep footed sailing yachts from 17’ to 85’ feet. Designed for performance & durability, Max Power electric tunnel thrusters offer many unique features:
- Patented composite drive legs
- Zero maintenance
- Case hardened spiro-conical gears
- Line shields
- Purpose built DC motors
- Electronic control boxes for unrivaled safety features
- Safe, high power connections
- Purpose built high specification DC contactors

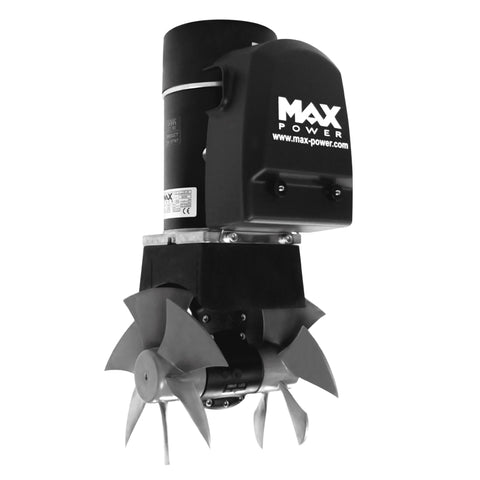

This composite, twin propeller, DC tunnel thruster is undeniably the best selling model in the Max Power electric tunnel thruster range. Available in 12V or 24V, the CT80 is perfectly suited to motor yachts and deep footed sailing yachts in the popular 25’-44’ size range.
With its 185mm tunnel diameter and thrust rating up to 80/176 (kg/lbs) on the 24V model, this powerful yet economic thruster integrates all the unique features common to the range and is fitted as standard on a large variety of yachts.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
| Code | Voltage | Thrust | Propellers | Power | Weight | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|---|---|
| 42533 | 24V | 69(kg) / 152(lbs) | 2 |
5.28(kw) / 7.1(hp) | 15.1(kg) | 210(mm) | 140(mm) | 275(mm) | 185(mm) | 6 - 7(mm) |
