Max Power

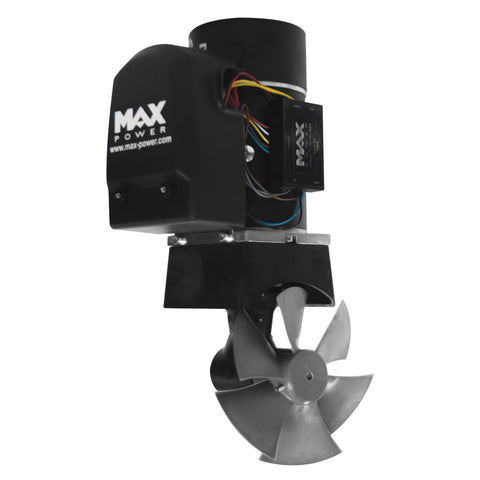

THRUSTER,CT60-24 COMP.MONO
Currently Out of Stock
Electric Tunnel Thrusters
Max Power offers a complete range of 12V/24V electric tunnel thrusters to suit motor boats and deep footed sailing yachts from 17’ to 85’ feet. Designed for performance & durability, Max Power electric tunnel thrusters offer many unique features:
- Patented composite drive legs
- Zero maintenance
- Case hardened spiro-conical gears
- Line shields
- Purpose built DC motors
- Electronic control boxes for unrivaled safety features
- Safe, high power connections
- Purpose built high specification DC contactors
CT60-24V is suited to motor boats and deep footed sailing yachts between 20’-40'.
Manufactured using composite materials, the CT60-24V is a single propeller thruster with a 185mm diameter tunnel and thrust rating up to 60/143 (kg/lbs)
Integrating the unique features common to the Max Power electric tunnel thrusters range, the CT60 is fitted as standard on a large variety of yachts.
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
| Code | Voltage | Thrust | Propellers | Power | Weight | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|---|---|
| 42531 | 24V | 63(kg) / 139(lbs) | 1 |
4.4(kw) / 5.9(hp) | 14.8(kg) | 210(mm) | 140(mm) | 275(mm) | 185(mm) | 6 - 7(mm) |
