Max Power

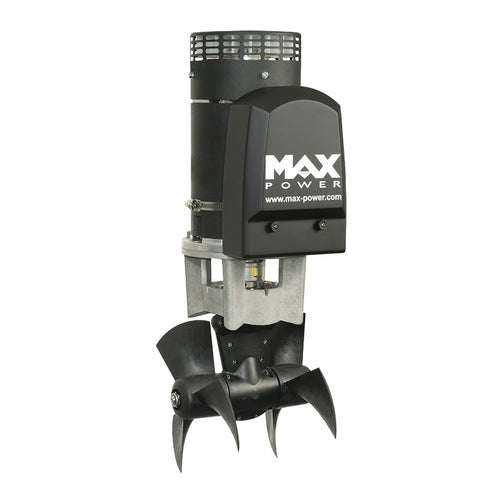

THRUSTER,CT225 COMP.DUO

In Stock

Description

Electric Tunnel Thrusters

Max Power offers a complete range of 12V/24V electric tunnel thrusters to suit motor boats and deep footed sailing yachts from 17’ to 85’ feet. Designed for performance & durability, Max Power electric tunnel thrusters offer many unique features:

Patented composite drive legs
Zero maintenance
Case hardened spiro-conical gears
Line shields
Purpose built DC motors
Electronic control boxes for unrivaled safety features
Safe, high power connections
Purpose built high specification DC contactors

The CT225 is the most powerful 250mm diameter electric tunnel thruster on the market, with a thrust rating up to 200/440 (kg/lbs), and is also the largest composite thruster in the Max Power electric tunnel thruster range.

Suitable for motor yachts and deep footed sailing yachts ranging from 44’-68’ this model is fitted as standard on large variety of yachts.

Offering all the unique features of the range this twin propeller model is ideal where extra thrust power is required.

* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

Code	Voltage	Thrust	Propellers	Power	Weight	A	B	C	D	E
317558	24V	195(kg) / 430(lbs)	2	14.96(kw) / 20(hp)	37(kg)	270(mm)	200(mm)	405(mm)	250(mm)	7 - 8(mm)
