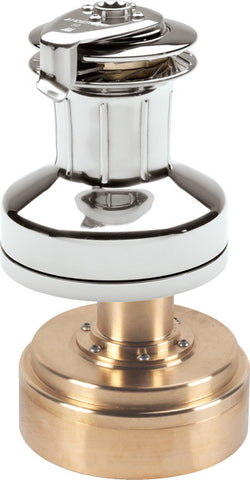

WINCH 40STE BELOW DECK VARIABLE

12V. SELF-TAILING

Compact Motor™ Electric Winches - Below Deck

If you desire the convenience of electric winches but have limited below-deck space, ANDERSEN Compact Motor™ Electric Winches are the perfect choice. They use our new highly compact variable-speed motor that was developed especially with the size and shape of a winch in mind. With its highly efficient power consumption, impressive line speed and high-load capacity, this small but powerful motor is the perfect power source for difficult winch placement.

An ANDERSEN exclusive, our Compact Electric Winch motor uses non-carbon brush technology to virtually eliminate the wear and tear of traditional electric motor designs. It uses 30-50% less power, yet can be positioned within the diameter of a standard winch mounting footprint for tight space applications.

The ANDERSEN Compact Motor™ Electric Winch is available in two models for eitherAbove Deck or Below Deck motor placement. Extremely easy to install and maintain, it integrates the motor, gears and power control into one compact unit with no extra control box necessary. Cables can be connected directly to the motor base.

As with all ANDERSEN Winches™, our Compact Motor™ Electric Winch features the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. This model also uses our exclusive self-tailing device that automatically accommodates a wide range of different line sizes.

Self Tailing Electric Winch Compact Motor - Variable Speed, Below Deck

Product Number	RA2034004100	RA2034014200	RA2034004200	RA2040014100	RA2040004100
Model	34 ST - Black Trim, 12 Volt	34 ST FS - Full Stainless, 24 Volt	34 ST - Black Trim, 24 Volt	40 ST FS - Full Stainless, 12 Volt	40 ST - Black Trim, 12 Volt
Drum Ø D  (mm)	70	70	70	75	75
Base Ø B  (mm)	125	125	125	152	152
Height H  (mm)	159	159	159	182	182
Line Entry L  (mm)	73	73	73	79	79
Line Size  (mm)	8-14	8-14	8-14	8-14	8-14
Weight  (kg)	17	17	17	18	18
Max Deck K  (mm)	54	54	54	54	54
Motor Depth J  (mm)	180	180	180	180	180
Motor Ø S  (mm)	195	195	195	195	195

Product Number	RA2040014200	RA2040004200	RA2046014100	RA2046004100	RA2046014200
Model	40 ST FS - Full Stainless, 24 Volt	40 ST - Black Trim, 24 Volt	46 ST FS - Full Stainless, 12 Volt	46 ST - Black Trim, 12 Volt	46 ST FS - Full Stainless, 24 Volt
Drum Ø D  (mm)	75	75	89	89	89
Base Ø B  (mm)	152	152	180	180	180
Height H  (mm)	182	182	209	209	209
Line Entry L  (mm)	79	79	90	90	90
Line Size  (mm)	8-14	8-14	8-14	8-14	8-14
Weight  (kg)	18	18	21	21	21
Max Deck K  (mm)	54	54	62	62	62
Motor Depth J  (mm)	180	180	188	188	188
Motor Ø S  (mm)	195	195	195	195	195
