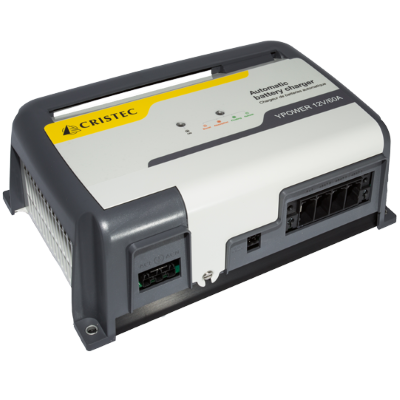

Cristec YPOWER Charger,12V/60A, 3 BANKS

Cristec YPOWER Charger.  12 Volt / 60 Amp.  3 Banks.

Input Voltage: From 90 to 265 VAC single-phase automatic
Recommended Battery Bank (Ah): 500-700Ah
Input Power Consumption at 115 VAC: 8.7 Amps
Recommended Power for a Generator: 1050W
Total Rated Output Current (+/-7%) / Rated Power: 60/855W

• New generation
• Automatic and Autonomous
• Plug & play : easy connection
• Silent
• High temperature performance
• CAN-BUS interface
• Remote touch-screen control panel

Plug & Play connectors

• Quick, reliable and friendly mounting. Charger to be located in tighter places.
• AC & DC plug connectors included.

High temperature performance

• Rated charge up to +60°C with no derating
• Can be installed in an engine room

Worldwide use

• 90-265VAC/47-65Hz auto-ranging
• Design and construction according to UL-1236 marine and CSa 22.2-107.2 standards
• Meet also ABYC A-31 requirements

5-stage charging profile

1. Boost : charges batteries to 80% of full charge
2. Absorption : slowly completes remaining charge to 100%
3. Floating : maintains battery charge
4. Automatic refresh : PREVENTS SULPHATION AND REVITALIZES BATTERIES, SELECTABLE BY INTERNAL SWITCH
5. Reboost : new automatic Boost phase if batteries demand needs it Power-supply mode also available IU mode by BOOST inhibiting by internal switch

3 isolated battery banks

• Automatically senses and distributes 100% of available charging Amps to any one bank or combination of all banks
• One bank dedicated to the engine battery + BAT E
• Integrated electronic MOSFET charge separator Protection of the charger during engine starting phase
